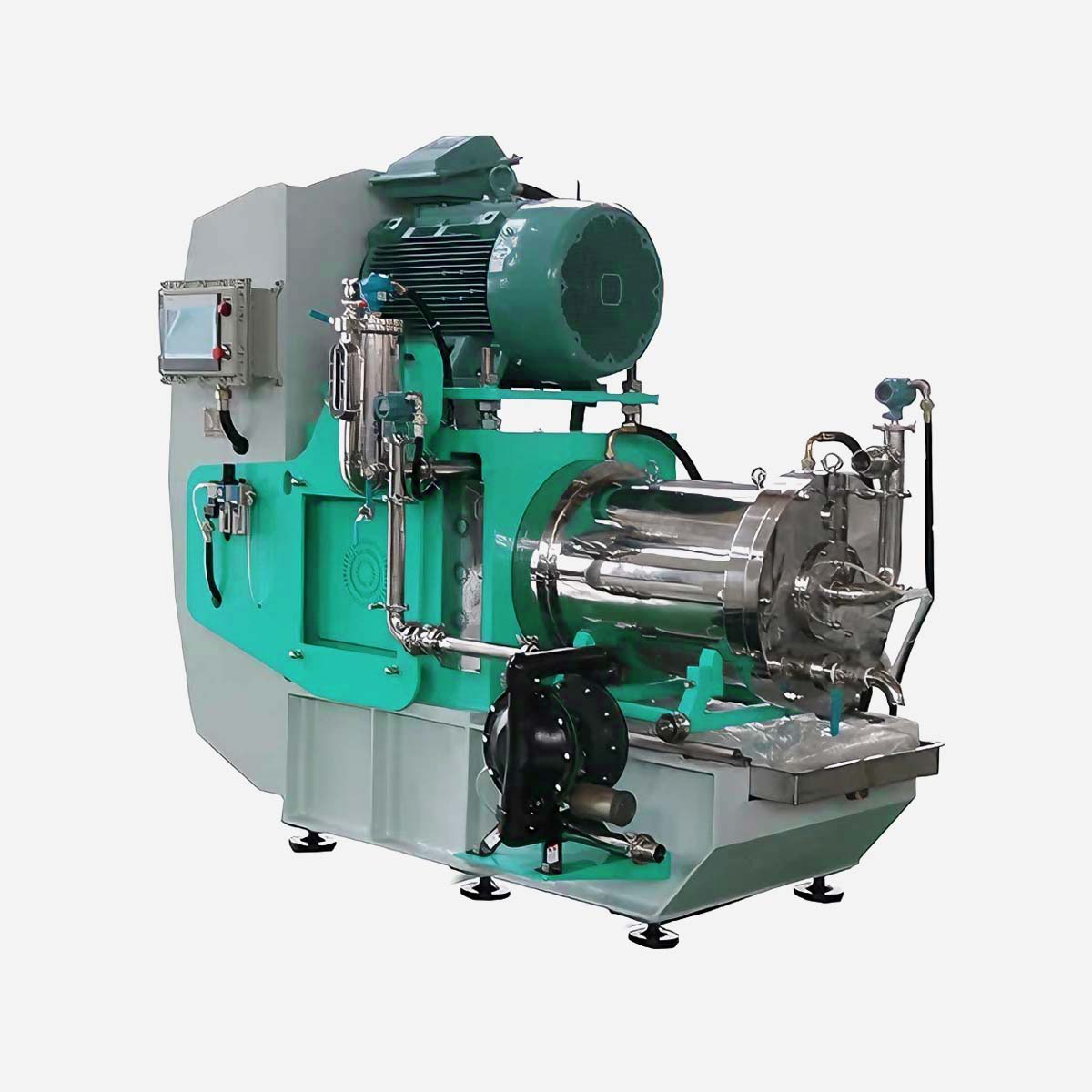

Equipped with a newly designed turbo disperser, it is widely used for the dispersion and grinding of digital printing inks, solvent-based inks, water-based inks, automotive coatings, industrial coatings, pigments, color pastes and nanomaterials.
Performance and features
High-Efficiency Turbo Disperser
Equipped with a newly designed turbo disperser, this structure has been optimized for specific applications. It can greatly improve the synchronous efficiency of material grinding and dispersion, significantly increase the output per unit time while ensuring grinding precision, and effectively reduce equipment operation energy consumption, perfectly meeting the high-capacity continuous production needs of chemical, coating and other industries.
High Energy Density Structure
The equipment adopts a structural design with a small length-to-diameter ratio. This design can significantly increase the energy density inside the chamber, making the impact and shearing effects between grinding media and materials more sufficient and uniform. It not only enhances the overall grinding intensity but also effectively ensures the consistency of material particle size refinement, meeting the production standards of high-precision products.
Large-Flow Centrifugal Screen
Equipped with a large-flow centrifugal separation screen, it has an ultra-large discharge area, enabling rapid screening and discharge of materials. It effectively reduces the residence time of materials in the chamber, improves the overall material circulation efficiency, avoids over-grinding or efficiency reduction caused by unsmooth discharge, and helps the production line achieve stable and efficient continuous operation.
Forced Cooling System for Grinding Cylinder
The grinding cylinder is equipped with a forced cooling system. Through a high-efficiency heat exchange structure design, it can quickly take away the heat generated during the grinding process, precisely control the temperature inside the chamber, avoid changes in material properties or increased wear of equipment components due to excessive temperature rise, and ultimately achieve low-temperature discharge to ensure product quality and equipment service life.
Wear-Resistant Alloy Steel for Contamination Reduction
The core components are made of high-quality wear-resistant alloy steel, which has excellent wear resistance. It can greatly reduce the wear of equipment components during the grinding process, minimize the risk of material contamination caused by metal debris from the source, ensure product purity, and is especially suitable for the production fields of nanomaterials, food additives and others with strict requirements on material cleanliness.
Flexible Customization of Multiple Materials
It supports flexible selection of materials for the parts of the equipment that come into contact with materials, according to the physical and chemical properties and production requirements of different products. The optional range covers stainless steel, polymer materials, ceramics and other types, which can solve the corrosion, contamination and other problems of different materials in a targeted manner, and greatly improve the adaptability and application scope of the equipment.
Technical Parameters
| Model/Specifications | JWT6 | JWT15 | JWT30 | JWT60 |
|---|---|---|---|---|
| Grinding Chamber Total Volume L | 9 | 20 | 40 | 75 |
| Effective Volume L | 6 | 15 | 30 | 60 |
| Motor Power kW | 11 | 22 | 45 | 55 |
| Processing Batch Volume L | 30~100 | 50~200 | 100~400 | 300~1000 |
| Cooling Water L/h | 1000 | 1500 | 2000 | 3000 |
| Maximum Linear Speed m/s | 14 | 14 | 14 | 15 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials.
The above parameters are for reference only, please consult our engineers for details.
