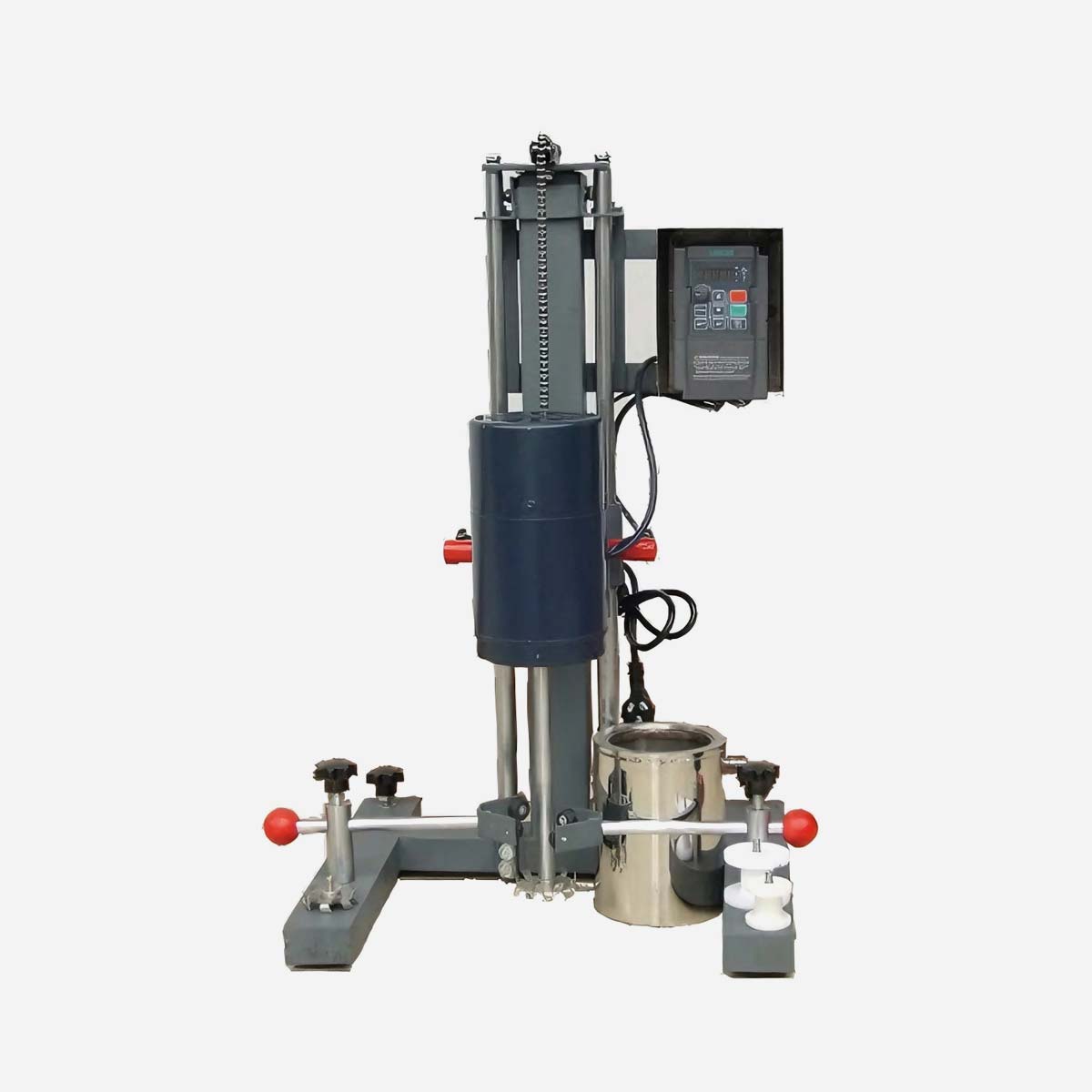

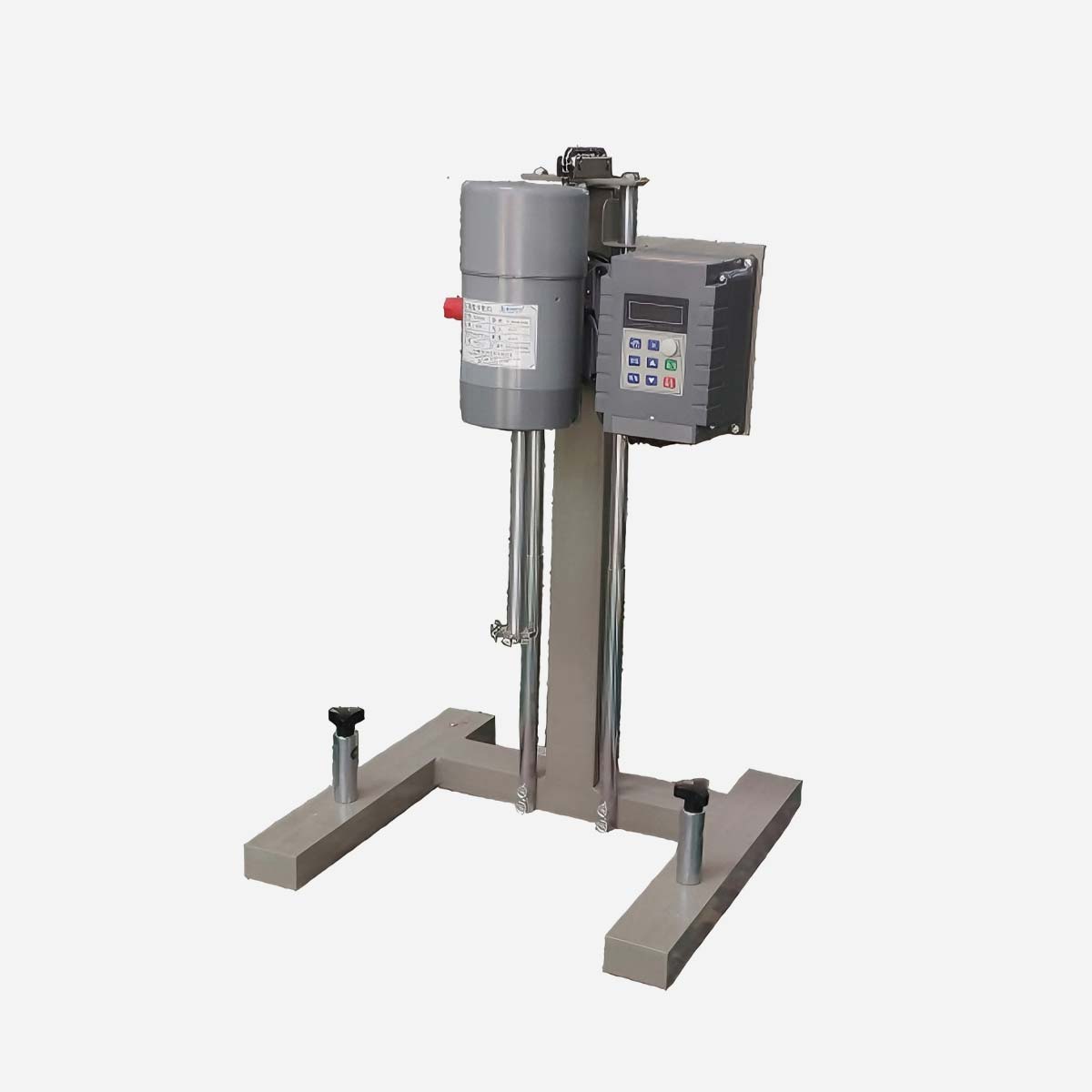

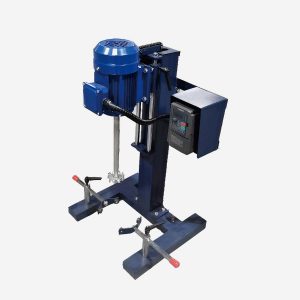

This integrated dispersion-grinding multi-function disperser adopts a brushless permanent magnet DC motor, which ensures no carbon brush wear or spark interference. It features compact size, high torque, low energy consumption, stepless speed regulation with PID control and 4-digit LED speed display, ideal for clean experimental and production environments.
New-Type Brushless Drive for Stable and Durable Performance
Equipped with a new-type permanent magnet DC motor drive system, it adopts a brushless design to fundamentally eliminate carbon brush wear, effectively extend the service life of the equipment and ensure long-term stable operation.
Compact, High-Efficiency & Low-Noise Operation
Featuring a compact size that saves space, it also boasts high torque and high operating efficiency, along with the advantages of low energy consumption and low noise. Free from commutation spark interference during operation, it is suitable for various clean experimental and production environments.
Intelligent & Precise Speed Regulation with Visual Parameter Control
It is equipped with stepless speed regulation and PID control technology, ensuring smooth and linear speed adjustment. Combined with a 4-digit LED digital tube, it can accurately display the motor speed in real time, facilitating operators to control process parameters.
Integrated Dispersion & Grinding for Dual Functions in One Machine
It realizes the integrated design of dispersion and grinding, allowing one single device to complete two core process operations, simplifying the operation process and improving the efficiency and convenience of material processing.
| Specifications/Model | JWSDF400 | JWSDF550 | JWSDF750 | JWBPF |
|---|---|---|---|---|
| Power kW | 0.4 | 0.55 | 0.75 | 1.1/1.5/2.2 |
| Power Supply | 220v 60Hz | 220v 60Hz | 220v 60Hz | 220v 60Hz |
| Processing Capacity ml | 200-1000 | 200-1000 | 300-5000 | 50-80 |
| Rotational Speed RPM | 100-8000 | 200-8000 | 0-3000 | 0-1500rpm、0-3000rpm |
| Material of Parts in Contact with Materials | 314 or 316L Stainless Steel | 314 or 316L Stainless Steel | 314 or 316L Stainless Steel | 314 or 316L Stainless Steel |
| Working Head Configuration | Dispersing Disc φ50, φ86; Sanding Disc φ45, φ60 | Dispersing Disc φ50, φ86; Sanding Disc φ45, φ60 | Dispersing Disc φ50, φ86; Sanding Disc φ45, φ60 | φ100、φ120、φ150 |
| Lifting Stroke mm | 250 | 300 | 250 | 500~600 |
| Overall Dimensions mm | 450x500x800 | 350x350x750 | 380x350x775 | 720X600X1320、720X650X1450 |
| Weight kg | 30 | 32 | 35 | 30 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials.
The above parameters are for reference only, please consult our engineers for details.
