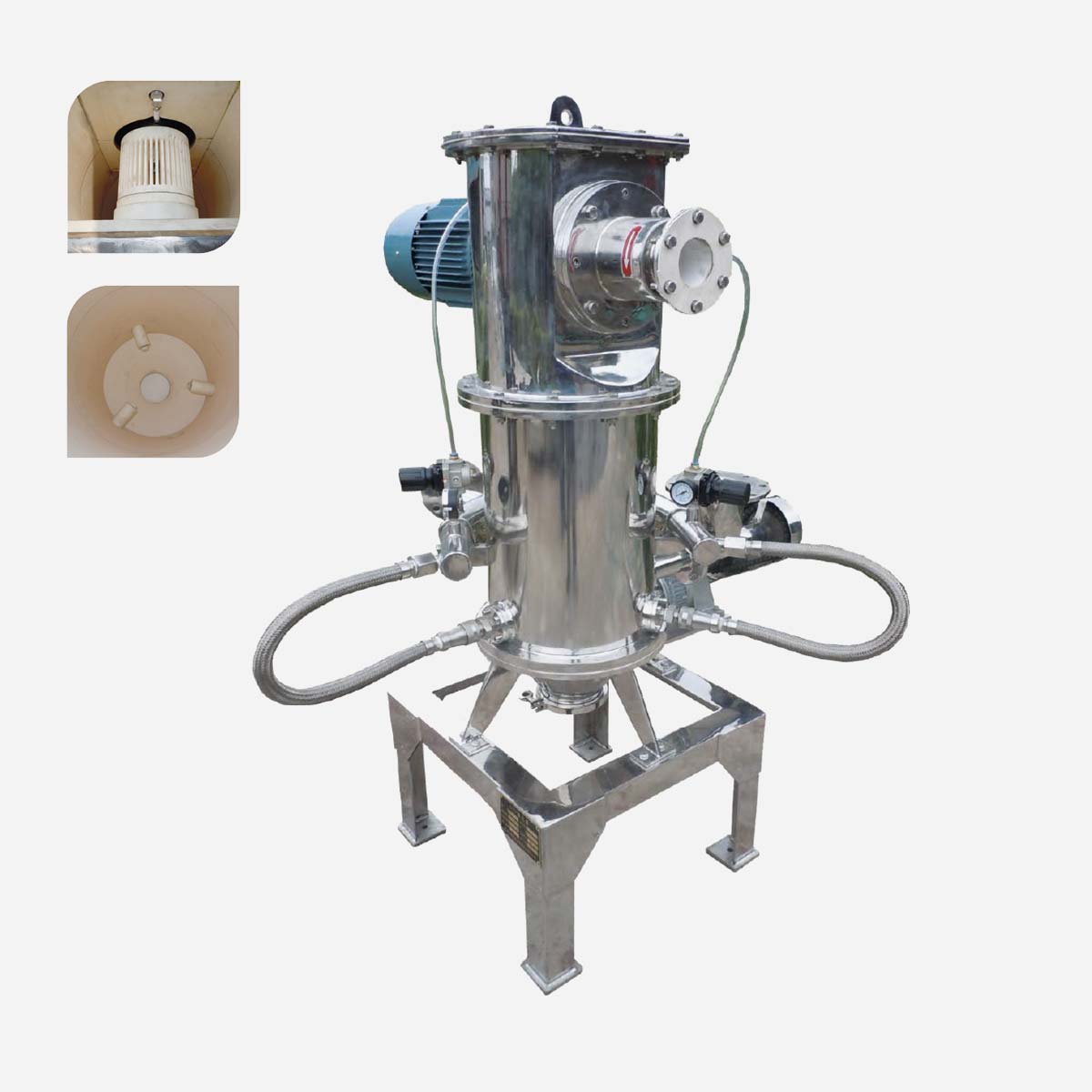

The jet mill can efficiently achieve uniform micron-level grinding under low-temperature (no temperature rise) and high-cleanliness conditions. It is suitable for materials with various properties such as heat-sensitive and oxidation-prone ones, and can also complete grinding and classification simultaneously, balancing high precision, strong adaptability and processing efficiency.
The product achieves an ultra-fine fineness of D97=1～4μm, with a narrow and uniform particle size distribution and no excessive large particles. This feature accurately meets the requirements of high-end precision processing scenarios, eliminates subsequent screening processes, and ensures the quality stability of end products.
Boasting industry-leading grinding efficiency and excellent energy consumption control, it saves 30～50% more energy compared to other types of jet mills. It significantly reduces power consumption during production, and long-term operation can greatly lower the comprehensive operating costs of enterprises.
The material processing path avoids nozzles, greatly reducing the wear of vulnerable parts and minimizing product contamination risks. It can stably produce iron-free pollution powder and process high-hardness materials with a Mohs hardness of 9～10, adapting to processing needs across multiple industries.
With a compact structural design, the equipment occupies little production space and operates at low noise, creating a comfortable working environment. The full automatic operation mode reduces manual intervention, lowers operational difficulty and labor costs, and improves overall production efficiency.
| Parameters / Model JFJM | 60 | 140 | 200 | 315 | 400 | 500 |
|---|---|---|---|---|---|---|
| Particle size (μm) | 1~50 | 2~50 | 2~50 | 3~50 | 4~50 | 4~50 |
| Diameter (mm) | 60 | 140 | 200 | 315 | 400 | 260×3 |
| Power (kW) | 1.1 | 4 | 5.5 | 15 | 22 | 7.5×3 |
| Maximum speed (r/min) | 18000 | 9800 | 6500 | 4000 | 3250 | 5000 |
| Output (kg/h) | 2~20 | 20~250 | 40~600 | 100~1500 | 250~2200 | 200~3000 |
| Compressed air consumption (m³/min) | 3 | 10 | 20 | 40 | 60 | 80 |
| Compressed air pressure (MPa) | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 |
| Total power (kW) | 30 | 90 | 150 | 280 | 380 | 500 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials.
The above parameters are for reference only, please consult our engineers for details.
